Netherlands / Dordrecht
Enduser
Energiehuis
Date of delivery
2013
Upper machinery

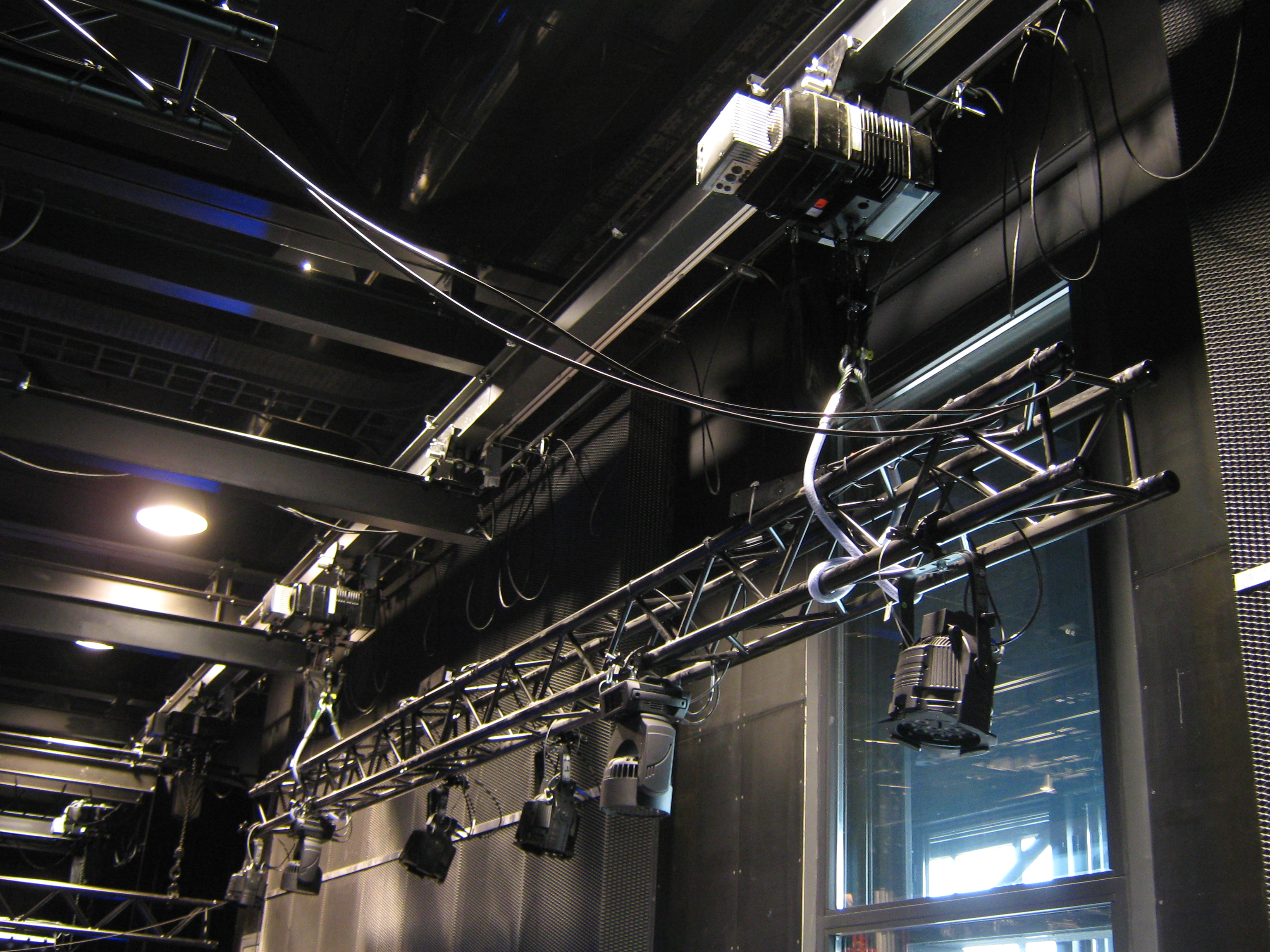

125 chainhosts 250kg and 500kg with adjustable speed - 5 flybars with adjustable speed
Lower machinery
Freight lift divided into two parts , load 1x10ton and 1x6 ton, lifting height 9m, speed 6m/min. Spira lifting system. Both lifts can move separately but also together (synchronized).
High-end control systems
Flycon control system for 3 smaller halls, Varicon control system for 1 large hall.
High-end control systems

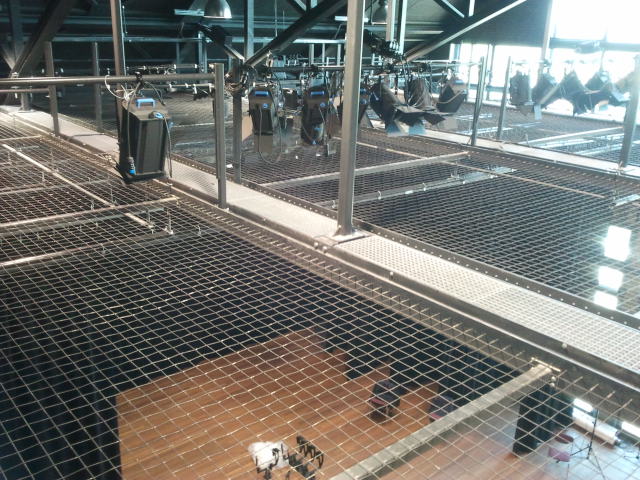

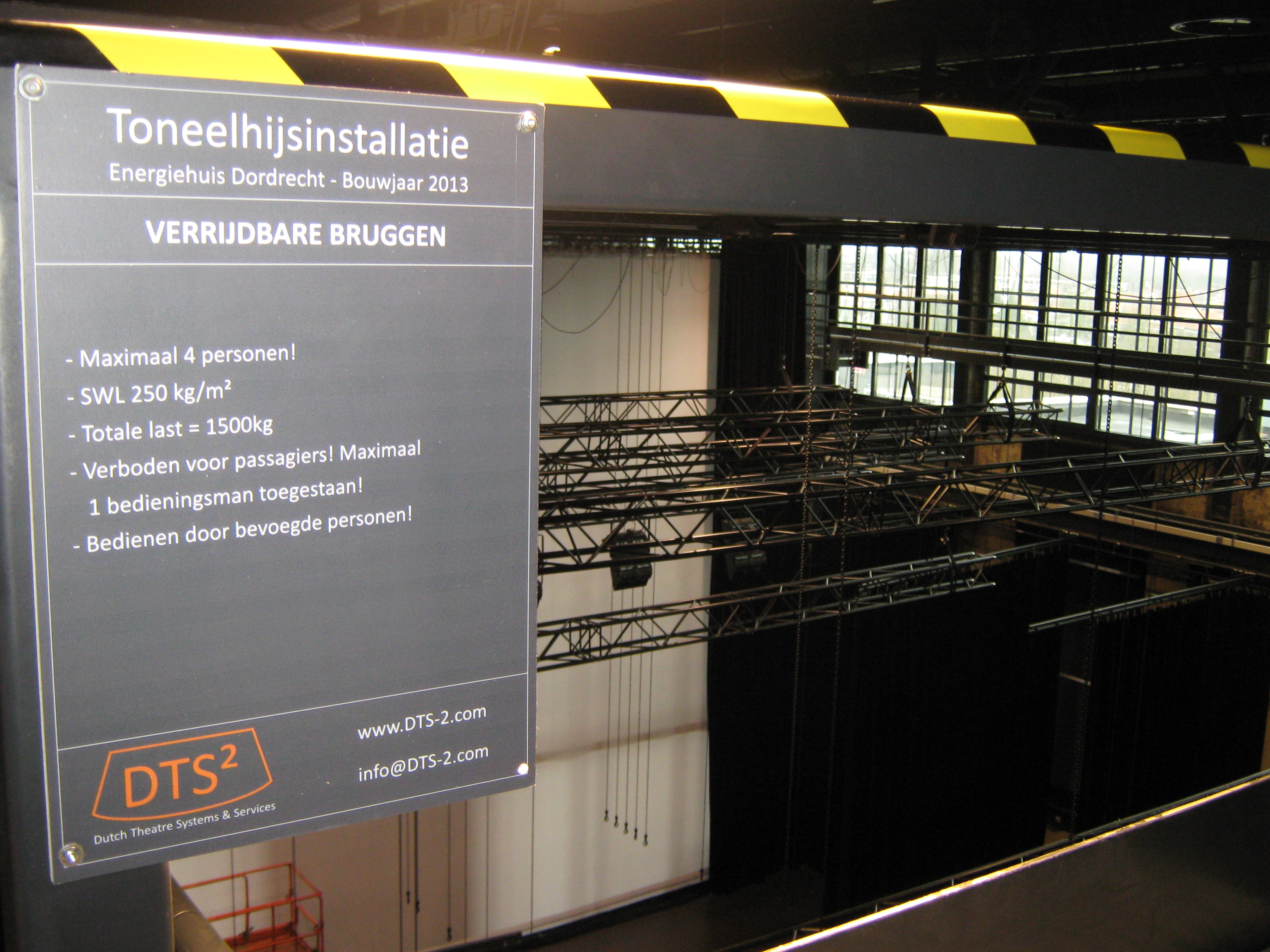

- Renovation of an existing 55tons overhead crane. This crane had to be suitable for a moveable bridge, span 18m - Moveable bridge, span 18m (new) - 24 moveable crane gantries - 1 tensiongrid, consisting of 4 sections of 18x4m, black steel cablel ø3mm - Staircases and cageladders
Details
The chain host installation is equipped with an operating system that provides drives and groups.
